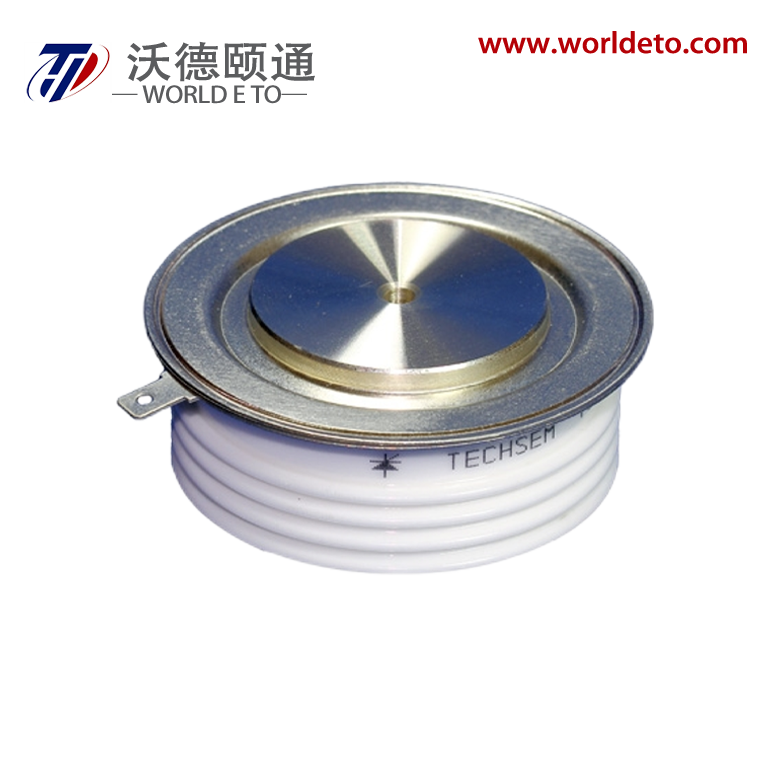

Y45KKD,High Frequency Thyristor

SYMBOL

CHARACTERISTIC

TEST CONDITIONS

Tj(。C)

VALUE

UNIT

Min

Type

Max

IT(AV)

Mean on-state current

180。half sine wave 50Hz Double side cooled,

TC=55。C

125

1010

A

VDRM VRRM

Repetitive peak off-state voltage Repetitive peak reverse voltage

tp=10ms

125

1200

1600

V

IDRM IRRM

Repetitive peak off-state current Repetitive peak reverse current

at VDRM at VRRM

125

50

mA

ITSM

Surge on-state current

10ms half sine wave VR=0.6VRRM

125

11

kA

I2t

I2t for fusing coordination

605

A2s*103

VTO

Threshold voltage

125

1.70

V

rT

On-state slope resistance

0.48

mΩ

VTM

Peak on-state voltage

ITM=1800A, F=21kN

25

3.20

V

dv/dt

Critical rate of rise of off-state voltage

VDM=0.67VDRM

125

1000

V/μs

di/dt

Critical rate of rise of on-state current

VDM= 67%VDRM to 1600A,

Gate pulse tr ≤0.5μs IGM=1.5A

125

1500

A/μs

Qrr

Recovery charge

ITM=1000A, tp=4000µs,  di/dt=-20A/µs, VR=100V

125

83

100

µC

tq

Circuit commutated turn-off time

ITM=1000A, tp=4000µs, VR=100V dv/dt=30V/µs, di/dt=-20A/µs

125

18

36

µs

IGT

Gate trigger current

VA=12V, IA=1A

25

30

250

mA

VGT

Gate trigger voltage

0.8

3.0

V

IH

Holding current

20

400

mA

IL

Latching current

500

mA

VGD

Non-trigger gate voltage

VDM=67%VDRM

125

0.3

V

Rth(j-c)

Thermal resistance Junction to case

At 1800 sine, double side cooled Clamping force 21kN

0.024

。C /W

Rth(c-h)

Thermal resistance case to heat sink

0.006

Fm

Mounting force

18

25

kN

Tvj

Junction temperature

-40

125

。C

Tstg

Stored temperature

-40

140

。C

Wt

Weight

3800

g

Outline

KT44cT
