900V~1900V,411H5
Product Brochure:DOWNLOAD
Brief introduction
Three Phases Rectification Bridge Modules,MDS200,produced by TECHSEM .
VRSM | VRRM | Type & Outline |
900V | 800V | MDS200-08-411H5 |
1100V | 1000V | MDS200-10-411H5 |
1300V | 1200V | MDS200-12-411H5 |
1500V | 1400V | MDS200-14-411H5 |
1700V | 1600V | MDS200-16-411H5 |
1900V | 1800V | MDS200-18-411H5 |
Features：
Typical Applications
SYMBOL |
CHARACTERISTIC |
TEST CONDITIONS | Tj(℃) | VALUE |
UNIT | ||
Min | Type | Max | |||||
IO | DC output current | Three-phase full wave rectifying circuit, TC= 100°C | 150 |
|
| 200 | A |
IRRM | Repetitive peak current | at VRRM | 150 |
|
| 12 | mA |
IFSM | Surge forward current | 10ms half sine wave VR=0 |
150 |
|
| 1.5 | kA |
I2t | I2t for fusing coordination |
|
| 11.25 | A2s*103 | ||
VFO | Threshold voltage |
|
150 |
|
| 0.75 | V |
rF | Forward slope resistance |
|
| 2.0 | mΩ | ||
VFM | Peak forward voltage | IFM=200A | 25 |
|
| 1.50 | V |
Rth(j-c) | Thermal resistance Junction to case | Single side cooled, per total |
|
|
| 0.10 | ℃/W |
Rth(c-h) | Thermal resistance case to heatsink | Single side cooled, per total |
|
|
| 0.07 | ℃ /W |
Viso | Isolation voltage | 50Hz,R.M.S,t= 1min,Iiso:1mA(max) |
| 2500 |
|
| V |
Fm | Terminal connection torque(M6) |
|
| 4.5 |
| 6.0 | N·m |
Mounting torque(M5) |
|
| 2.5 |
| 4.0 | N·m | |
Tvj | Junction temperature |
|
| -40 |
| 150 | ℃ |
Tstg | Stored temperature |
|
| -40 |
| 125 | ℃ |
Wt | Weight |
|
|
| 330 |
| g |

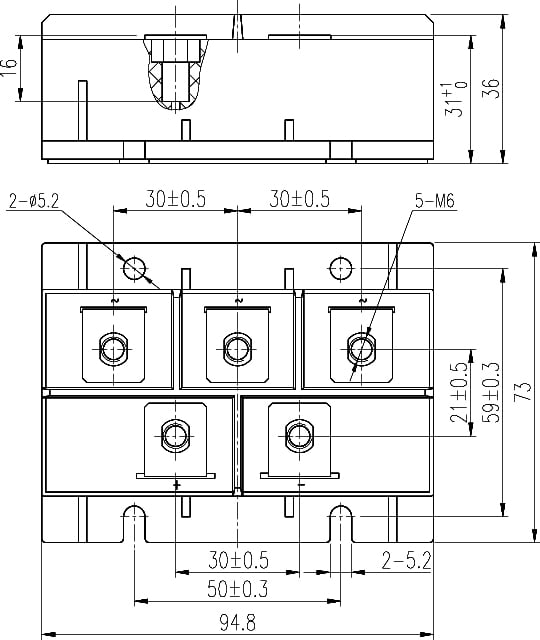

Outline | 411H5 | ||||||
